Guideline

　　Comply with EU ROHS or REACH environmental standards.

Product Description

　　■Using standard materials, phosphor bronze 50μ gold-plated nickel 100μ crystal head to ensure the excellent performance of the product.

　　■It is made of imported environmentally friendly materials to ensure that the pin piece will not be distorted during crimping.

　　■The crystal head is injection molded to ensure the connection between the cable and the crystal head.

　　■Performance meets the requirements of Gigabit Ethernet

Electrical characteristics

　　■250 volts AC, maximum 2 amps withstand voltage volts.

　　■Withstand voltage test: less than 0.5 amps 1000 volts DC/one minute

　　■Insulation resistance: 1000 volts DC/one minute, greater than 500 megohms.

　　■Contact resistance: no more than 20 ohms.

　　◉Mechanical properties

　　■Pull test, cable to socket tension strength is at least 20 pounds for one minute (B9N)

　　■Endurance test, plug and unplug test more than 2000 times.

　　Operating temperature range: -40℃~+68℃

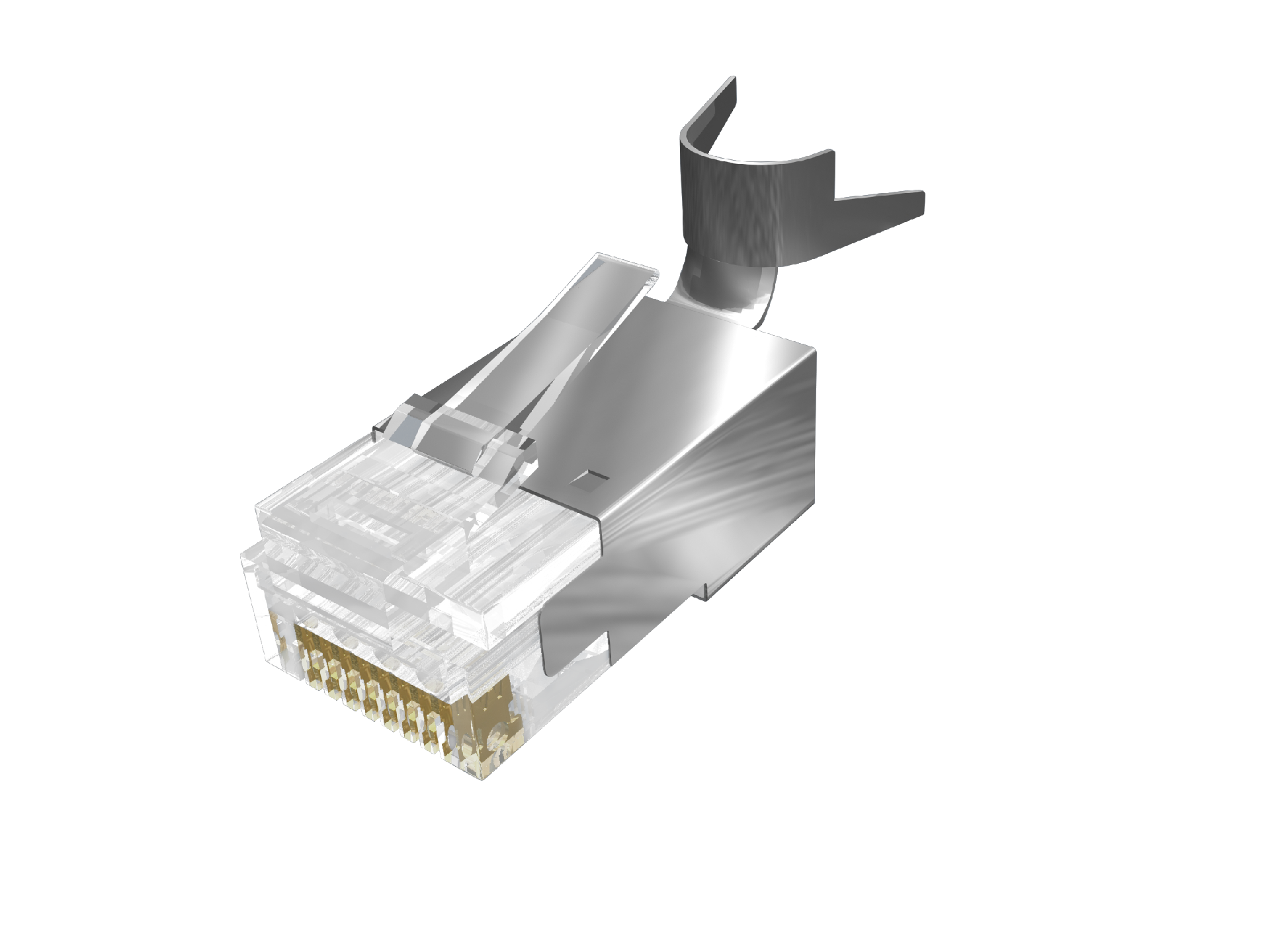

　　◉ CLAN Category 6 crystal head model
