Guideline
Comply with EU ROHS or REACH environmental standards.
Electrical characteristics
■250 volts AC, maximum 2 amps withstand voltage volts.
■Withstand voltage test: less than 0.5 amps 1000 volts DC/one minute
■Insulation resistance: 1000 volts DC/one minute, greater than 500 megohms.
■Contact resistance: no more than 20 ohms.
Mechanical properties
■Pull test, cable to socket tension strength is at least 20 pounds for one minute (B9N)
■Endurance test, plug and unplug test more than 2000 times.
Operating temperature range: -40℃~+68℃

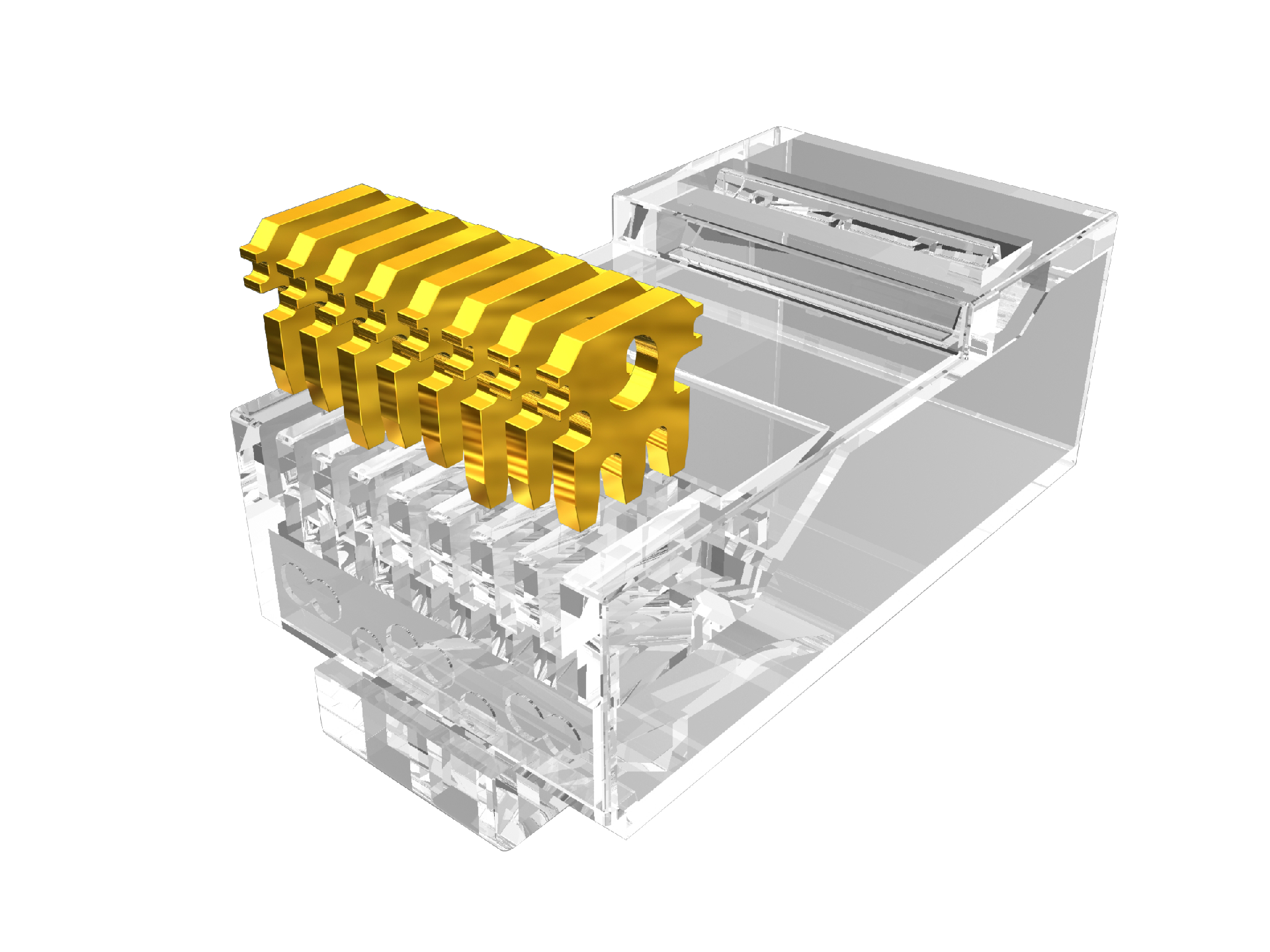

CLAN Category 6e crystal head model
| Product number | category | Product Description | Package |
| CL60350U-08 | UTP | Category 6e unshielded RJ45 crystal head | 100 pieces/box |
| CL6S350U-08 | FTP | Category 6e shielded RJ45 crystal head |
