Guideline
Comply with EU ROHS or REACH environmental standards.

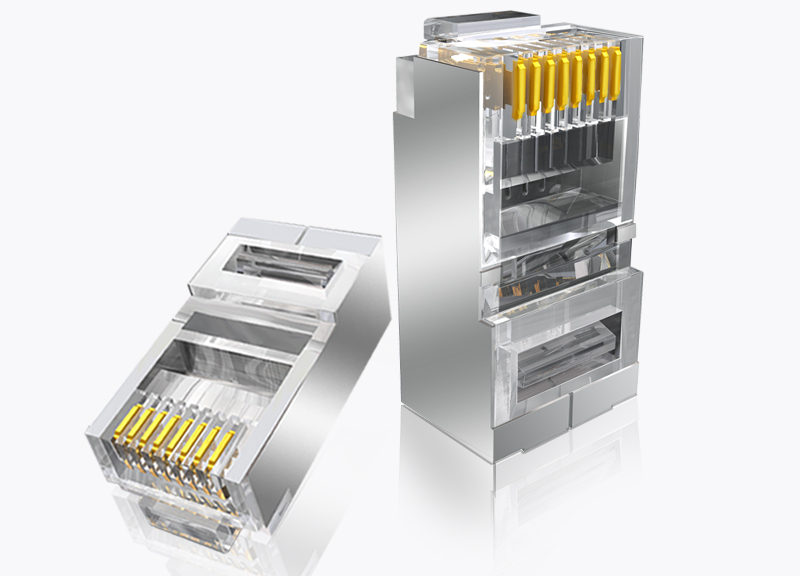

Product Description
■Using standard materials, phosphor bronze 50μ gold-plated nickel 100μ crystal head to ensure the excellent performance of the product.
■It is made of imported environmentally friendly materials to ensure that the pin piece will not be distorted during crimping.
■The crystal head is injection molded to ensure the connection between the cable and the crystal head.
Electrical characteristics
■250 volts AC, maximum 2 amps withstand voltage volts.
■Withstand voltage test: less than 0.5 amps 1000 volts DC/one minute
■Insulation resistance: 1000 volts DC/one minute, greater than 500 megohms.
■Contact resistance: no more than 20 ohms.
Mechanical properties
■Pull test, cable to socket tension strength is at least 20 pounds for one minute (B9N)
■Endurance test, plug and unplug test more than 2000 times.
Operating temperature range: -40℃~+68℃
CLAN Category 5e crystal head model
Product number | category | Product Description | Package |
CL5E350U-08 | UTP | Category 5e unshielded RJ45 crystal head | 100 pieces/box |
CL5S350U-08 | FTP | Category 5e shielded RJ45 crystal head | 100 pieces/box |
CL60350U-08 | UTP | Category 6 unshielded RJ45 crystal head | 100 pieces/box |
CL6S350U-08 | FTP | Category 6 shielded RJ45 crystal head | 100 pieces/box |
