◉Reference standards
TIA/EIA-568B, ISO/IEC 11801, YD/T1019, IEC61034, IEC60754
◉Product description
Temperature level: 75 degrees
Combustion level: IEC60332-1 or IEC60332-3

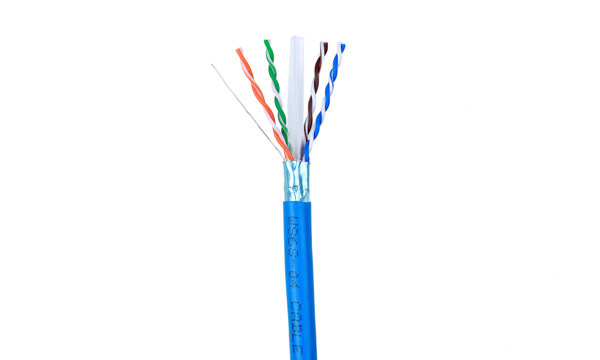

Solid bare copper conductor PE polyethylene insulated tear rope design
PVC polyvinyl chloride, LSZH low smoke halogen-free, CM/CMR universal flame retardant, CMP pressurized flame retardant outer sheath
It uses 0.57mm high-quality oxygen-free copper as the conductor, which greatly exceeds the Category 5e system indicators, providing abundant margin for system links to support convenient and fast construction and laying.
Single-sided aluminum foil polyester tape combined with ground wire effectively shields external electromagnetic interference, enabling safe and effective information transmission.
◉Physical properties
structure | structure | Four pairs of shielded network cables |
Number of pairs | 4 | |
conductor | Wire gauge | 23AWG |
Conductor type | Single strand solid bare copper | |
conductor material | Oxygen-free copper | |
Mechanical behavior | weight | 52KG/KM |
Jacket tensile strength | 10/12.5Mpa | |
outer cover elongation | 125/150 | |
Outer cover aging conditions | 24*7/100℃ | |
Electrical properties | Working capacitor unbalanced | ≤5.6nF/100M |
Unbalanced capacitance to ground | ≤160pF/100M | |
Propagation delay difference | ≤45 | |
Maximum conductor resistance | ≤9.5Ω/100M | |
Maximum operating voltage -UL | 75V |
CLAN Category 6 cable model
Product number | category | Product Description | Nominal weight | Package | nominal diameter |
WS60-04 | UTP | Category 6 Unshielded Twisted Pair 24AWG PVC Blue | 12.2kg | 305m/ box | 5.8mm |
WS60-04/3 | UTP | Category 6 unshielded twisted pair 23AWG PVC blue | 13.7kg | 305m/ box | 6.2mm |
WS6S-04 | FTP | Category 6 shielded twisted pair 23AWG PVC blue | 15.8kg |
