◉Reference standards
ANSI/TIA/EIA-568A, EIA/TIA-606
Cable:ISO/IEC 11801, CLASS D, EN50173
Plug: IEC60332-1, IEC60332-3 IEC61034, IEC60754

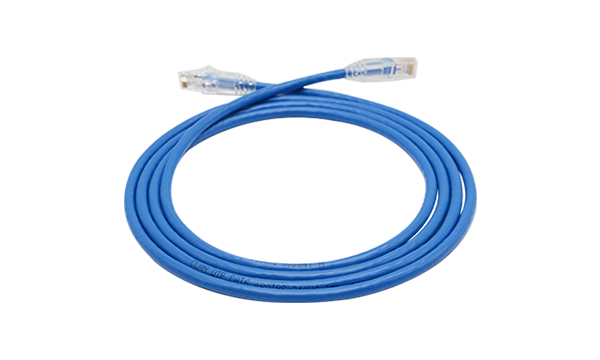

◉Product description
Using multi-core bare copper soft wire as conductor is helpful to reduce impedance and facilitate signal transmission.
Durable, high-quality connectors resist corrosion, heat and airborne contaminants
Provide PVC polyvinyl chloride or LSZH low smoke halogen-free sheath
Available in 1, 2, 3 and 5 standard lengths, other lengths and colors are also available upon request
The Category 6 unshielded jumper adopts 50μ gold-plated crystal head to ensure the excellent performance of the product.
Adopting advanced technology and integrated crimping molding, it effectively prevents the crystal head from falling off and makes the connection stronger and more reliable.
◉Physical properties
conductor | Wire gauge | 24AWG |
|---|---|---|
Conductor type | Stranded bare copper | |
Mechanical properties | Number of plugs and unplugs | Minimum 750 insertions |
Tension resistance | ≤100N | |
bending radius | 8*OD | |
Electrical characteristics | compatibility | Standard RJ45 socket |
Impedance average | 100Ω±5 | |
Insulation resistance | ≥5000MΩ.KM | |
Contact resistance | ≤5MΩ | |
DC Resistance | ≤9.5Ω/100M | |
Operating temperature | -20℃~60℃ |
CLAN Category 6 jumper model
| Product number | category | Product Description | Package |
| WPC60-10F-BU | Cat6 | Category 6 unshielded patch cord 24AWG PVC 6 colors 3 meters | 1 piece/bag |
| WPC60-10F-LBU | Cat6 | Category 6 unshielded jumper 24AWG LSZH 6 colors 3 meters | 1 piece/bag |
| WPC6S-10F-BU | Cat6 | Category 6 shielded jumper 24AWG PVC white blue 3 meters | 1 piece/bag |
| WPC6S-10F-LBU | Cat6 | Category 6 shielded jumper 24AWG LSZH blue 3 meters |
