Category 6 four pairs of unshielded network cables

发布时间:2024-01-24 00:06:25点击量:1010

◉Reference standards

  TIA/EIA-568B, ISO/IEC 11801, YD/T1019, IEC61034, IEC60754

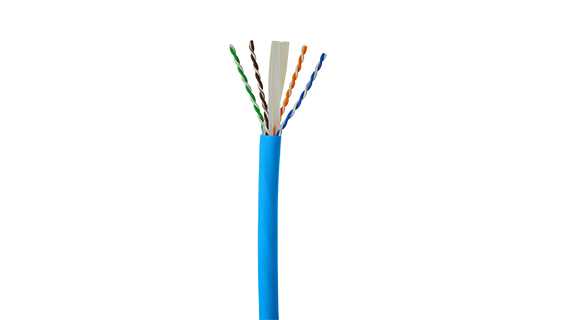

  ◉Product descriptionCategory 6 four pairs of unshielded network cable.jpg

  Temperature level: 75 degrees

  Combustion level: IEC60332-1 or IEC60332-3

  Solid bare copper conductor PE polyethylene insulated tear rope design

  PVC polyvinyl chloride, LSZH low smoke halogen-free, CM/CMR universal flame retardant, CMP pressurized flame retardant outer sheath

  High-density polyethylene and labeled for insulation per full spectrum standards

  ◉Physical properties

structure

structure

U/UTP





Number of pairs

4

conductor

Wire gauge

24AMG





Conductor type

Single strand solid bare copper


conductor material

Oxygen-free copper

Mechanical behavior

weight

38kg/km





Jacket tensile strength

10/12.5 MPa


outer cover elongation

125/150


Outer cover aging conditions

24*7/100℃

Electrical properties

Working capacitor unbalanced

≤5.6nF/100m(@1kHz)





Unbalanced capacitance to ground

≤160pF/100m


Propagation delay difference

≤45ns/100m


Maximum conductor resistance

≤9.5Ω/100m


Maximum operating voltage-UL

75V









CLAN Category 6 cable model

Product number

category

Product Description

Nominal weight

Package

nominal diameter

WS60-04

UTP

Category 6 unshielded twisted pair 24AWG PVC blue

12.2kg

305m/box

5.8mm

WS60-04/3

UTP

Category 6 unshielded twisted pair 23AWG PVC blue

13.7kg

305m/box

6.2mm

WS6S-04

FTP

Category 6 shielded twisted pair 23AWG PVC blue

15.8kg

305m/axis

7.2mm
