◉Reference standards
TIA/EIA-568C.2, ISO/IEC 11801, IEC 60754-2, IEC61034, IEC60754, YD/T1019
◉Product description
Temperature level: 75 degrees
Combustion level: IEC60332-1 or IEC60332-3

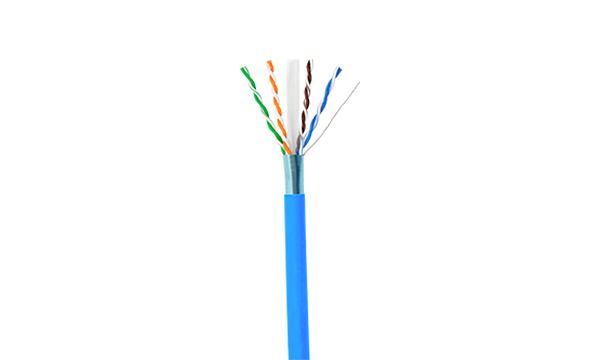

Solid bare copper conductor PE polyethylene insulated cross isolation tear rope design
PVC polyvinyl chloride, LSZH low smoke halogen-free, CM/CMR universal flame retardant, CMP pressurized flame retardant outer sheath
◉Physical properties
structure | structure | F/UTP |
Number of pairs | 4 | |
conductor | Wire gauge | 23AMG |
Conductor type | Single Strand Solid Bare Copper | |
conductor material | Oxygen-free copper | |
Mechanical behavior | weight | 52kg/km |
Jacket tensile strength | 10/12.5 MPa | |
outer cover elongation | 125/150 | |
Outer cover aging conditions | 24*7/100℃ | |
Electrical properties | Working capacitor unbalanced | ≤5.6nF/100m(@1kHz) |
Unbalanced capacitance to ground | ≤160pF/100m | |
Propagation delay difference | ≤45ns/100m | |
Maximum conductor resistance | ≤9.5Ω/100M | |
Maximum operating voltage-UL | 75V | |
CLAN Category 6e cable model
Product number | category | Product Description | Nominal weight | Package | nominal diameter |
WS6A-04 | UTP | Category 6e unshielded twisted pair 23AWG PVC blue | 16.2kg | 305m/axis | 7.2mm |
WS6AS-04 | FTP | Category 6e shielded twisted pair 23AWG PVC blue | 17.5kg | 305m/axis | 7.8mm |
