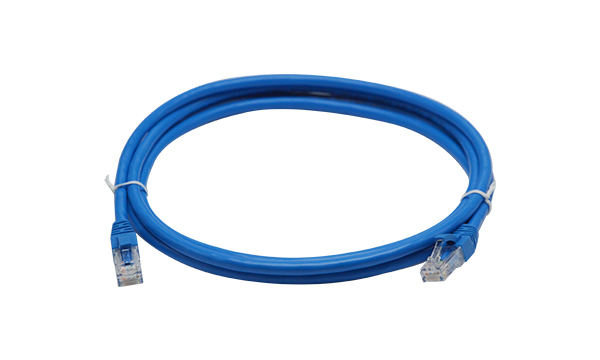

Category 6e (6A) unshielded jumper

发布时间:2024-01-24 00:08:12点击量:1007

◉Reference standards

  ANSI/TIA/EIA-568A, EIA/TIA-606

  Cable: ISO/IEC 11801, IEC61034, IEC60754, CLASS D, EN50173

  Plug:IEC332-1Category 6e (6A) unshielded jumper.jpg

  ◉Product description

  Using multi-core bare copper soft wire as conductor is helpful to reduce impedance and facilitate signal transmission.

  Durable, high-quality connectors resist corrosion, heat and airborne contaminants

  Available in a variety of color combinations for different needs or department management

  Provide PVC polyvinyl chloride or LSZH low smoke halogen-free sheath

  Available in 1, 2, 3 and 5 standard lengths, other lengths and colors are also available upon request

  The jumper adopts 50μ gold-plated crystal head to ensure the excellent performance of the product.

  Adopting advanced technology and integrated crimping molding, it effectively prevents the crystal head from falling off and makes the connection stronger and more reliable.

  ◉Product application

  Work area data panel trunk line subsystem patch panel network equipment connection

  ◉Physical properties

conductor

Wire gauge

24AWG


Conductor type

Stranded bare copper

Mechanical properties

Number of plugs and unplugs

Minimum 750 insertions


Tension resistance

≤100N


bending radius

8*OD

Electrical characteristics

compatibility

Standard RJ45 socket


Impedance average

100±5


Insulation resistance

≥5000MΩ.KM


Contact resistance

≤5MΩ


DC Resistance

≤9.5Ω/100M


Operating temperature

-20℃~60℃


CLAN Category 6e jumper model

Product number

category

Product Description

Package

WPC6AS-10F-BU

Cat6A

Category 6e shielded jumper 23AWG PVC blue 3 meters

piece / bag

WPC6AS-10F-LBU

Cat6A

Category 6e shielded jumper 23AWG LSZH blue 3 meters

piece / bag

WPC6A-10F-BU

Cat6A

Category 6e unshielded patch cord 23AWG PVC 6 colors 3 meters

piece / bag

WPC6A-10F-LBU

Cat6A

Category 6e unshielded jumper 23AWG LSZH 6 colors 3 meters
