Guideline
TIA/EIA-568AC, YD/T926.3-2009, ISO/IE11801-2008
Product Description
Support 500MHz
Module type supports UTP, FTP
Keystone supports CLAN modular structure hardware, making installation faster and easier
Color coding: T568A and T568B
Can support 22-26AWG single strand wire, 24AWG multi-strand wire
UL certification
Supports repeated termination
Supports POE+ applications, each pair can transmit 15W power
Applications
22-26AWG single stranded wire 24AWG multi-stranded wire
physical properties
Material | Module ontology | ABS plastic that meets UL94V-2 fire rating standards |
|---|---|---|
IDC ontology | PC plastic that meets UL94V-2 fire rating standards | |
Core pin contact material | golden needle | RJ45 8-pin connector, C5100W phosphor bronze, 100U” nickel base, 50U” gold plating |
Cable terminal | C5191R-H phosphor bronze, thickness = 0.8mm, 60U” nickel base, 200U” tin plating | |
Mechanical properties | Number of plugs and unplugs | RJ-45 crystal head that complies with FCC standards and has a plug-and-pull capacity of 1500 times |
life span | Minimum 1500 insertions, minimum 500 re-terminations | |
contact force | Contact force with FCC-compliant RJ-45 crystal head is 100g | |
Crystal head retention | 11 pounds | |
Electrical characteristics | Minimum DC stable voltage | 1000VAC RMS (60Hz contact to contact) |
Rated current | 1.5A (20℃) | |
Insulation resistance | 500Ω | |
Contact resistance | 20 mΩ | |
DC Resistance | 0.1Ω | |
storage temperature | -40～68℃ | |
humidity | 10%-90%RH |

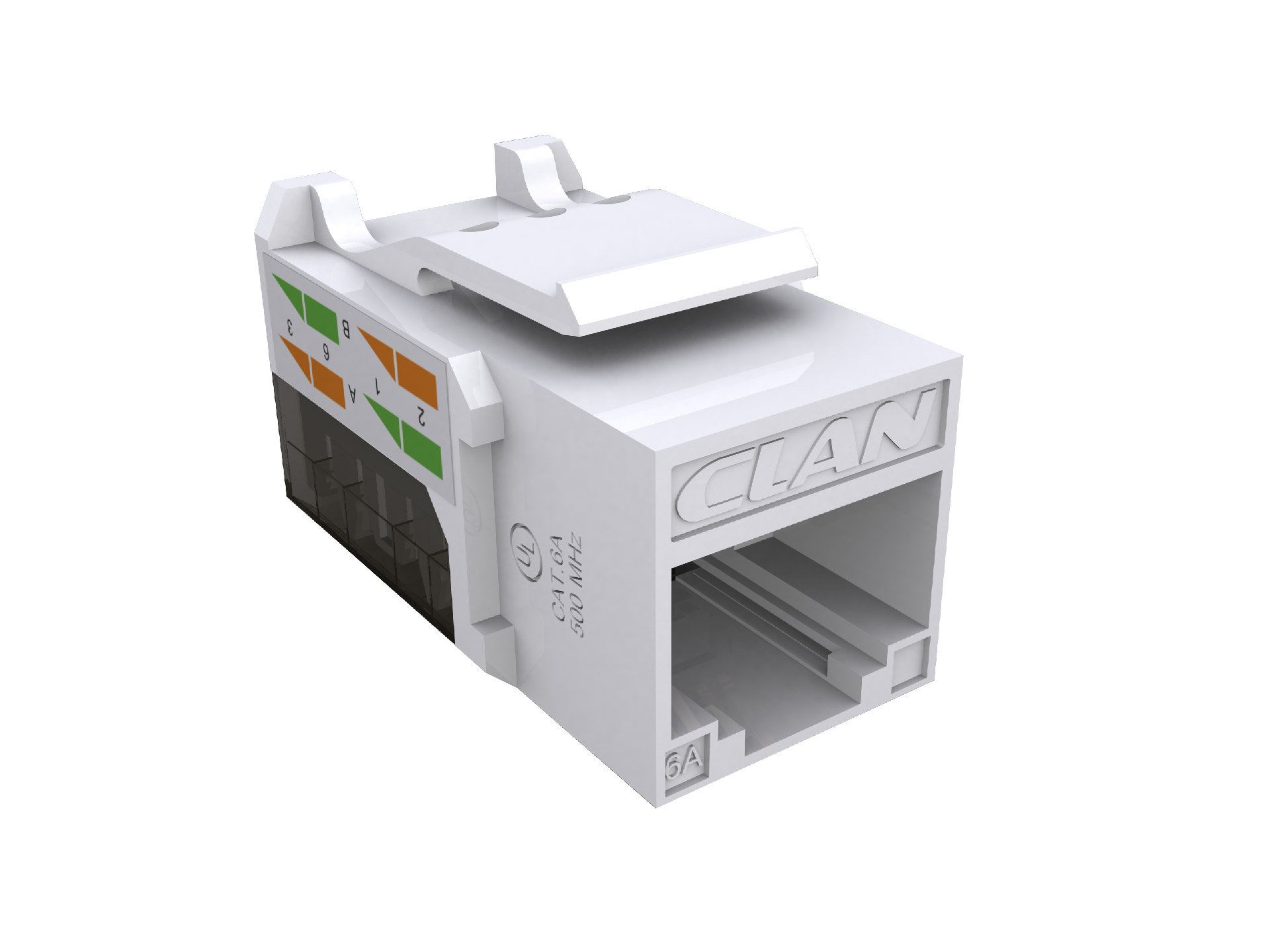

CLAN Category 6e module model
| Product number | category | Product Description | Package |
| MJ6A-04 | UTP | 6A unshielded module Keystone | 1 piece/bag |
| MJ6AS-04 | FTP | 6A shielding module Keystone |
